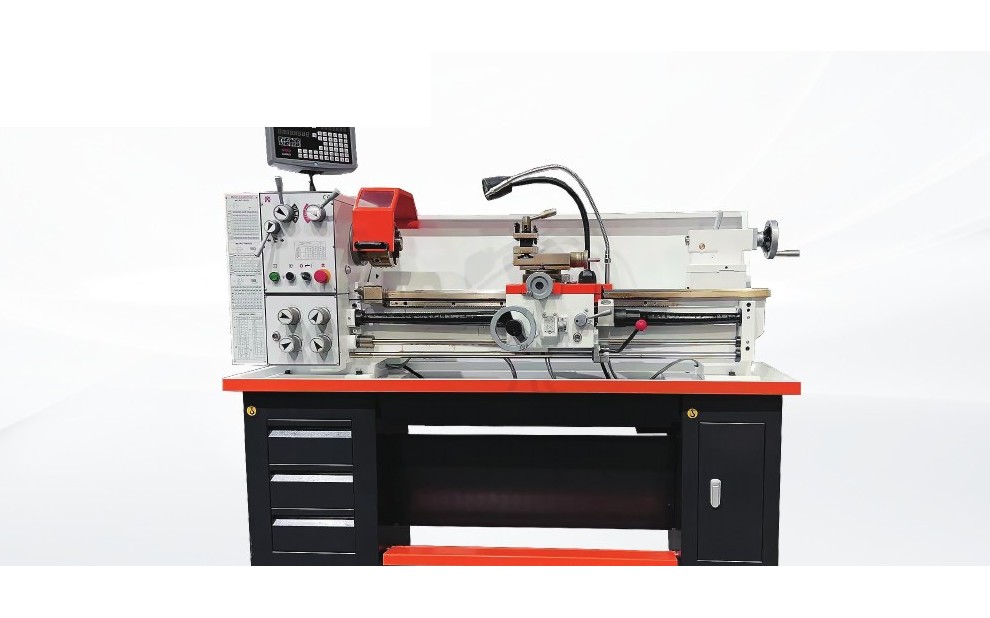

Bench Lathe
C0636A / C0636C / C0636V
Compact bench lathes for workshops, training and light general turning.
Bench Lathe
Model Family
C0632A, C0636C, C0636V
- Easy-operation speed change levers.
- Headstock gears and bed guideways are hardened and ground.
- 51 mm spindle bore and variable-speed options are available.
Compare Models
Technical Specifications
Specifications are reproduced from the electronic catalog supplied by the user and are subject to change without notice. Note: the catalog page title lists C0636A/C0636C/C0636V, while the first specification-table column is labeled C0632A; please confirm this model designation before final customer quotation.
| Specification | Unit/单位 | C0632A | C0636C | C0636V |
|---|---|---|---|---|
| Max. swing over bed | mm | 330 | 360 | 360 |
| Max. swing over cross slide | mm | 212 | 508 | 508 |
| Max. swing over gap | mm | 476 | 225 | 225 |
| Width of bed | mm | 182 | 189 | 189 |
| Max.lengthofworkpiece 最大工件长度 | mm | 1000 | 1000 | 1000 |
| Spindle bore | mm | 38 | 38(Opt.51) | 51 |
| Spindle bore taper | / | M.T.No.5 | M.T.No.5(No.6) | M.T.No.6 |
| Spindle speed range | rpm | 65-1810 | 70-2000 | 30-450/450-3000 |
| Spindle speed steps | steps | 9 | 8 | 2 |
| Spindle nose | / | D4 | D4(D5) | D5 |
| Traveloftopslide 小刀架行程 | mm | 85 | 95 | 95 |
| Cross slide travel | mm | 160 | 185 | 185 |
| Cutting tool section | mm | 16×16 | 16×16 | 16×16 |
| Metric thread range / No. | mm | 0.4-7/32 | 0.4-7/26 | 0.4-10/26 |
| Inch thread range / No. | TPI | 60-4/36 | 56-4/34 | 56-4/34 |
| Longitudinal feed range | mm/r | 0.053-1.291 | 0.052-1.392 | 0.052-1.392 |
| Cross feed range | mm/r | 0.011-0.275 | 0.014-0.38 | 0.014-0.38 |
| Tailstock quill diameter | mm | 32 | 32 | 42 |
| Tailstock quill travel | mm | 95 | 100 | 100 |
| Tailstock quill taper | / | M.T.No.3 | M.T.No.3 | M.T.No.3 |
| Mainmotorpower 主电机功率 | KW | 1.5 | 1.5 | 2.2 |
| Packing size (L×W×H) | mm | 1970×760×1600 | 1970×760×1600 | 1970×830×1600 |
| Netweight 机 | kg | 480 | 550 | 600 |
Need a quotation for C0636A / C0636C / C0636V?
Send your required turning length, voltage, destination country and preferred accessories. FuTech can help match the configuration.
