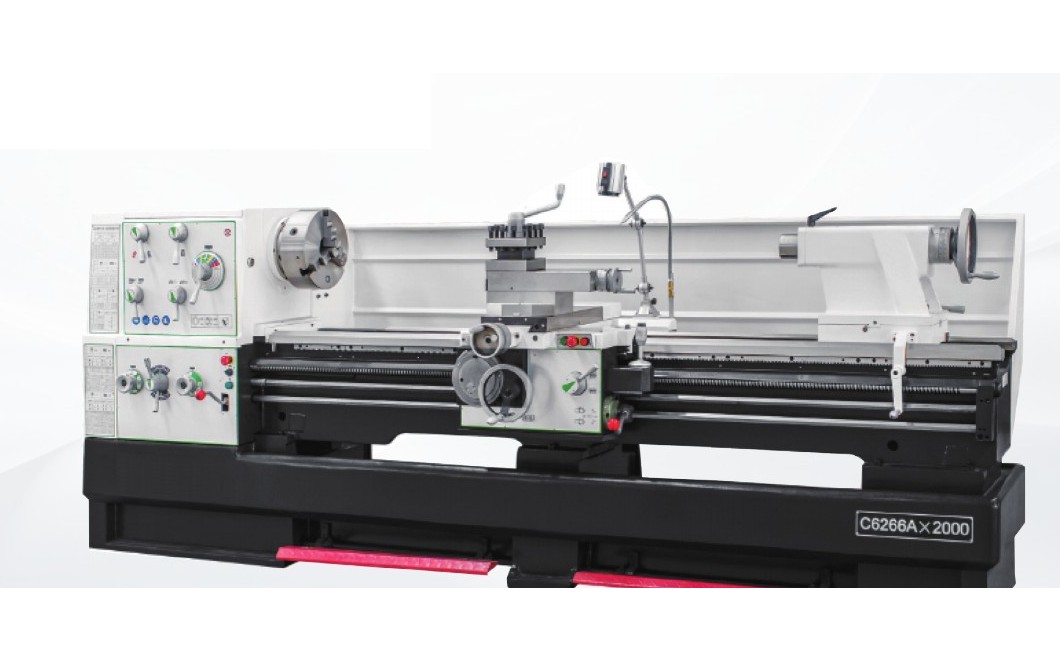

Precision Lathe
C6266A / C6266V / CQ6280 / CQ6280V
Heavy conventional lathes with 660-800 mm swing, 105 mm spindle bore and mechanical clutch.
Precision Lathe
Model Family
C6266A, C6266V, CQ6280, CQ6280V
- Headstock gears and bed guideways are hardened and ground.
- Mechanical clutch in the headstock.
- Stable whole-base construction with variable-speed configuration available.
Compare Models
Technical Specifications
Specifications are reproduced from the electronic catalog supplied by the user and are subject to change without notice.
| Specification | Unit/单位 | C6266A | C6266V | CQ6280 | CQ6280V |
|---|---|---|---|---|---|
| Max. swing over bed | mm | 660 | 660 | 800 | 800 |
| Max. swing over cross slide | mm | 440 | 440 | 570 | 570 |
| Max. swing over gap | mm | 900 | 900 | 1035 | 1035 |
| Width of bed | mm | 400 | 400 | 400 | 400 |
| Max.lengthofworkpiece 最大工件长度 | mm | 1500/2000/3000/4000 | |||
| Spindle bore | mm | 105 | 105 | 105 | 105 |
| Spindle bore taper | / | Metric113 | Metric113 | Metric113 | Metric113 |
| Spindle speed range | rpm | 25-1600 | 16-70/50-215/110- 475/350-1500 | 25-1600 | 16-70/50-215/110- 475/350-1500 |
| Spindle speed steps | steps | 16 | 4 | 16 | 4 |
| Spindle nose | / | D8 | D8 | D8 | D8 |
| Traveloftopslide 小刀架行程 | mm | 230 | 230 | 230 | 230 |
| Cross slide travel | mm | 368 | 368 | 420 | 420 |
| Cutting tool section | mm | 25×25 | 25×25 | 25×25 | 25×25 |
| Metric thread range / No. | mm | 0.45-120/54 | 0.45-120/54 | 0.45-120/54 | 0.45-120/54 |
| Inch thread range / No. | TPI | 80-7/16/54 | 80-7/16/54 | 80-7/16/54 | 80-7/16/54 |
| Longitudinal feed range | mm/r | 0.044-1.48 | 0.044-1.48 | 0.044-1.48 | 0.044-1.48 |
| Cross feed range | mm/r | 0.022-0.74 | 0.022-0.74 | 0.022-0.74 | 0.022-0.74 |
| Module thread range / No. | M.P | 0.25-60/46 | 0.25-60/46 | 0.25-60/46 | 0.25-60/46 |
| D.P. thread range / No. | D.P | 160-7/8/46 | 160-7/8/46 | 160-7/8/46 | 160-7/8/46 |
| Tailstock quill diameter | mm | 90 | 90 | 90 | 90 |
| Tailstock quill travel | mm | 235 | 235 | 235 | 235 |
| Tailstock quill taper | / | M.T.No.5 | M.T.No.5 | M.T.No.5 | M.T.No.5 |
| Mainmotorpower 主电机功率 | KW | 7.5 | 7.5 | 7.5 | 7.5 |
| Packing size (L×W×H) | mm | 3300/3800/4800×1150×1950 | 3300/3800/4800×1150×1950 | ||
| Netweight 机 | kg | 3060/3350/3700 | 3160/3450/3800 |
Need a quotation for C6266A / C6266V / CQ6280 / CQ6280V?
Send your required turning length, voltage, destination country and preferred accessories. FuTech can help match the configuration.
